Mates with "M" Series

‍

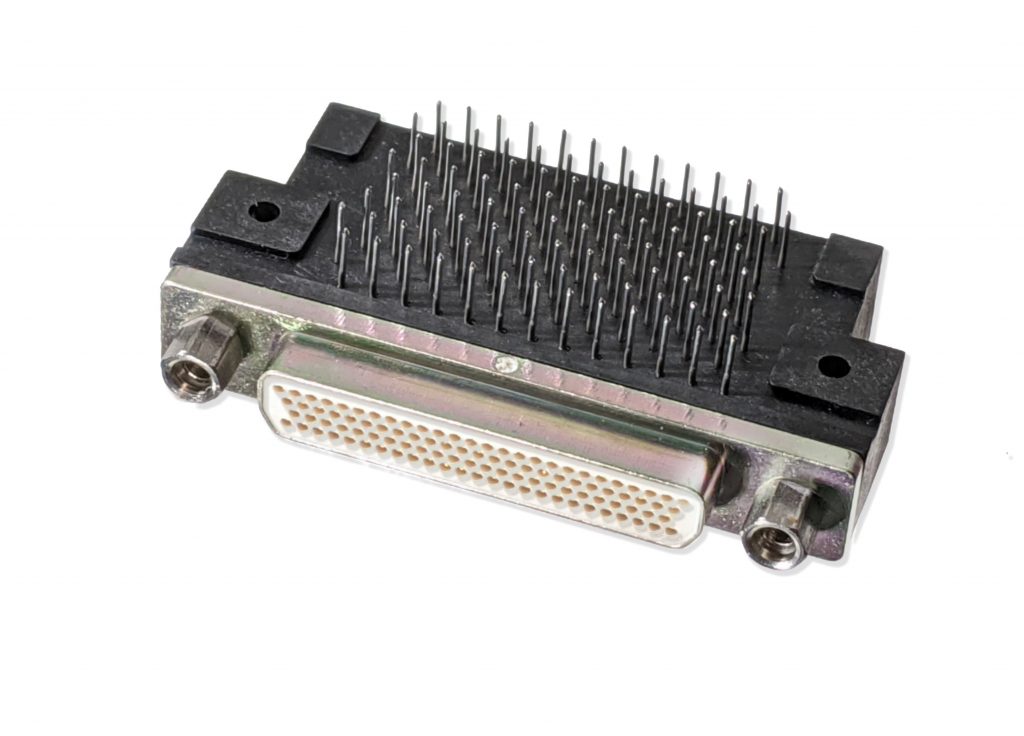

• This Series has been designed to horizontally mount with right angle lead terminations for soldering to a PC board.

• Similar to the “BR” Series but having a different PC Board hole pattern (Footprint).

• Jackposts can be provided that accept “M” Series connectors having Jackscrew hardware.

• Available 9 thru 100 contact configurations.

• Also available in our “D” Series. Consult factory for modifications.

• Standard temperature rating -55C to +125C

• High temperature rating -55C to +200C

‍
