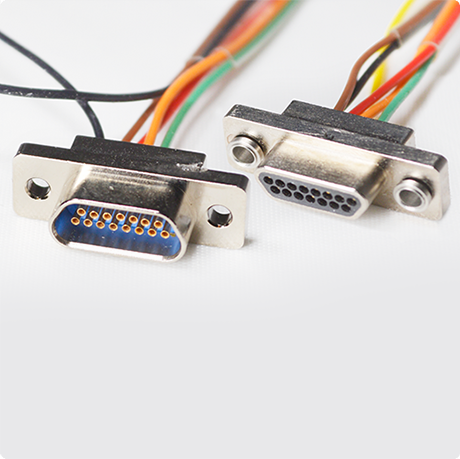

For well over 2 decades, MIN-E-CON micro connectors and wired assemblies have been used on military, space and commercial applications. All plastic or metal shell styles provide up to 100 contacts on .050”(1.27 mm) centers. Connectors are completely interchangeable with other manufacturer’s Micro “D” style units.

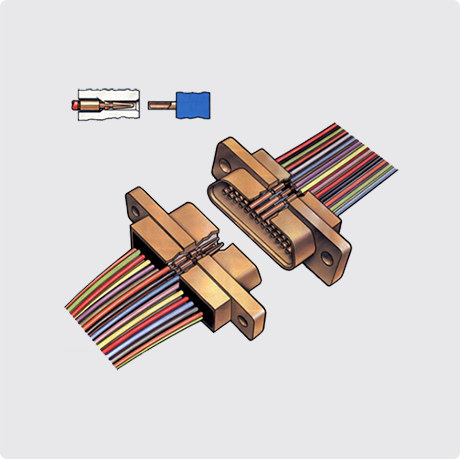

-In this Min-E-Con patented design, the male pin is protected in the cavity of the plastic insulator.
-The tubular machined socket is exposed and guided into the pin insulator cavity by means of a lead-in chamfer.
-Once mated, the compressed beams of the pin contact provide constant pressure resulting in high reliability.
-The system provides low insertion forces with 2000 mating cycle durability.
