BR M Series

Advanced inspection and testing to ensure every component meets precise specifications and quality standards.

Get Free Quote
Get Free Quote
ArrowArrow

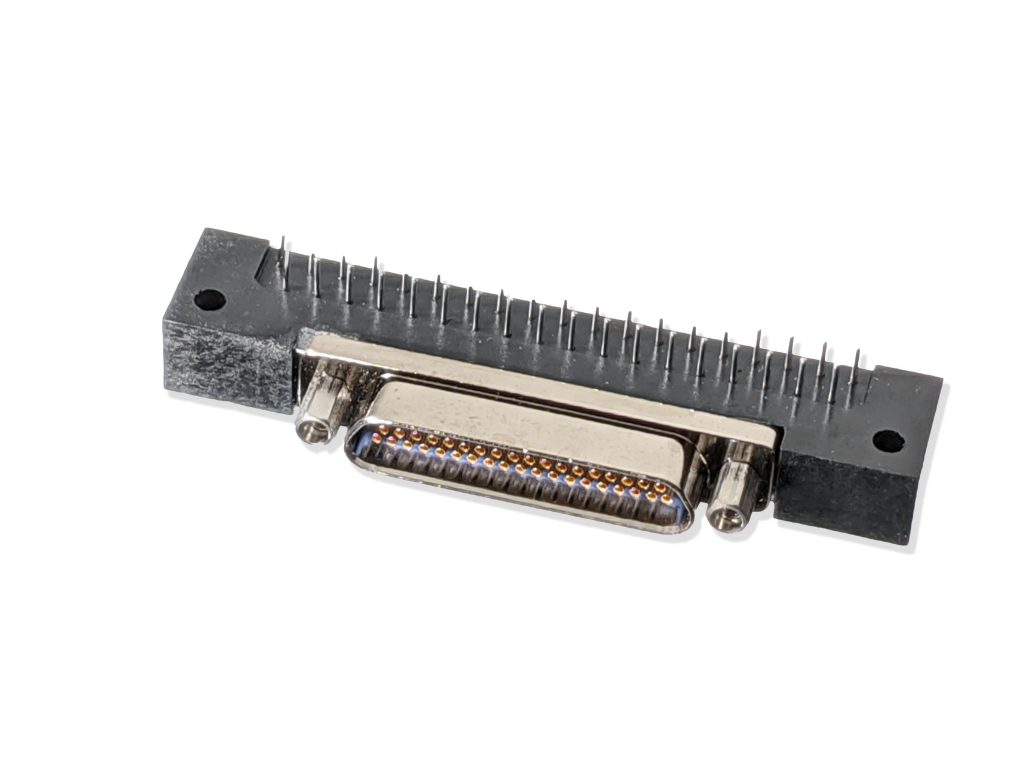

Service Detail Image

Mates with “M” Series

‍

  • This Series has been designed to horizontally mount with right angle lead terminations for soldering to a PC board.
  • Similar to the “CBR” Series but having a different PC Board hole pattern (Footprint).
  • Jackposts can be provided that accept “M” Series connectors having Jackscrew hardware.
  • Available 9 thru 100 contact configurations.
  • Also available in our “D” Series. Consult factory for modifications.
  • Standard temperature rating -55C to +125C
  • High temperature rating -55C to +200C

‍
